Lineage graphs and audit history

Use a lineage graph to visualize a linked artifact’s history. Audit a collection’s history to track changes made to artifacts in that collection.

​

Lineage graphs

Within a collection in the W&B Registry, you can view a history of the artifacts that an ML experiment uses. This history is called a lineage graph. A lineage graph shows:

• Artifacts used as inputs to a run.
• Artifacts created as outputs from a run.

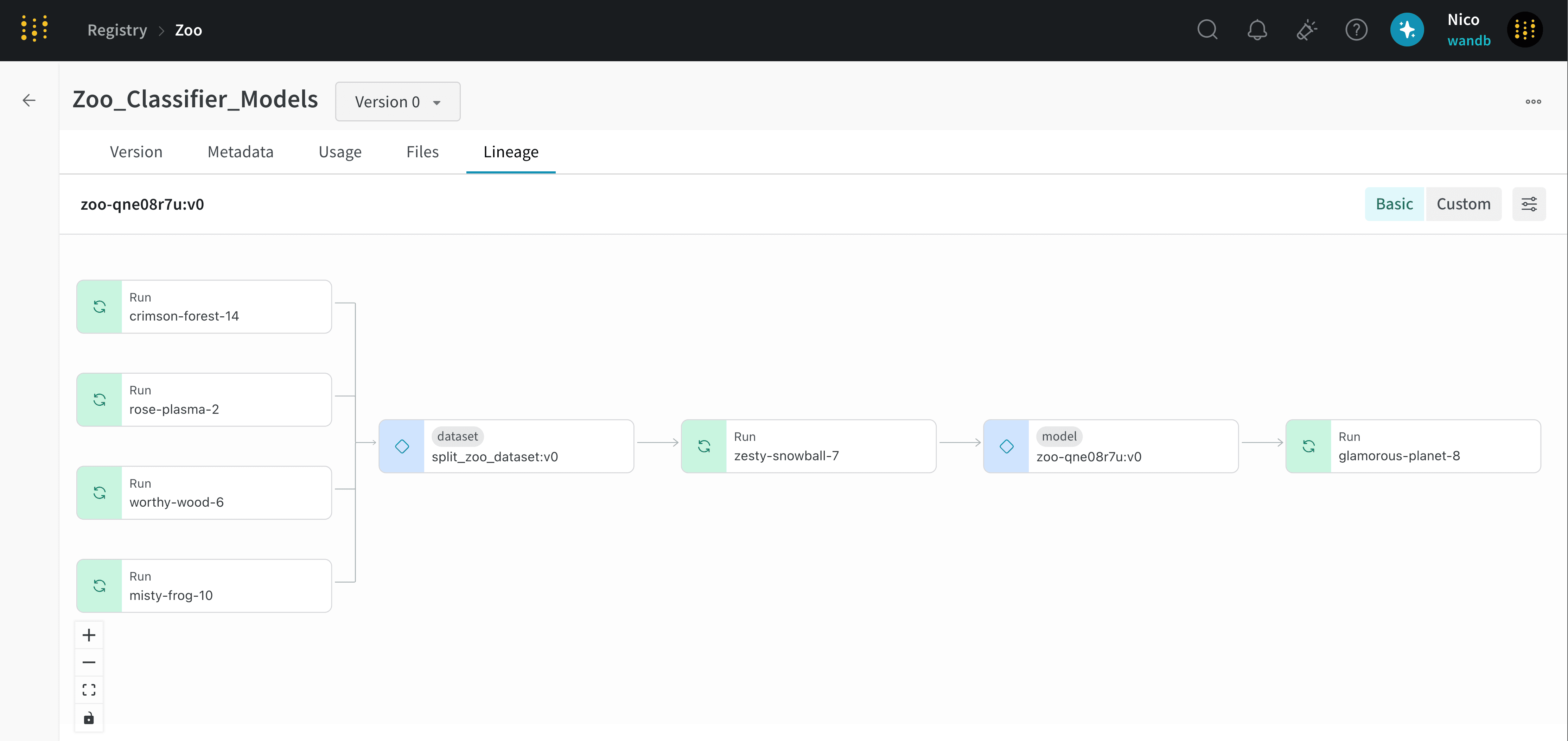

For example, the following image shows a lineage graph for artifacts created and used throughout an ML experiment: From left to right, the image shows:

1. Multiple runs log the split_zoo_dataset:v0 artifact.
2. The zesty-snowball-7 run uses the split_zoo_dataset:v0 artifact for training.
3. The output of the zesty-snowball-7 run is a model artifact called zoo-qne08r7u:v0.
4. A run called glamorous-planet-8 uses the model artifact zoo-qne08r7u:v0 to evaluate the model.

To view a lineage graph for an artifact in a collection:

1. Navigate to the W&B Registry.
2. Select the collection that contains the artifact.
3. From the dropdown, select the artifact version whose lineage graph you want to view.
4. Select the Lineage tab.
5. Select a node to view detailed information about the run or artifact.

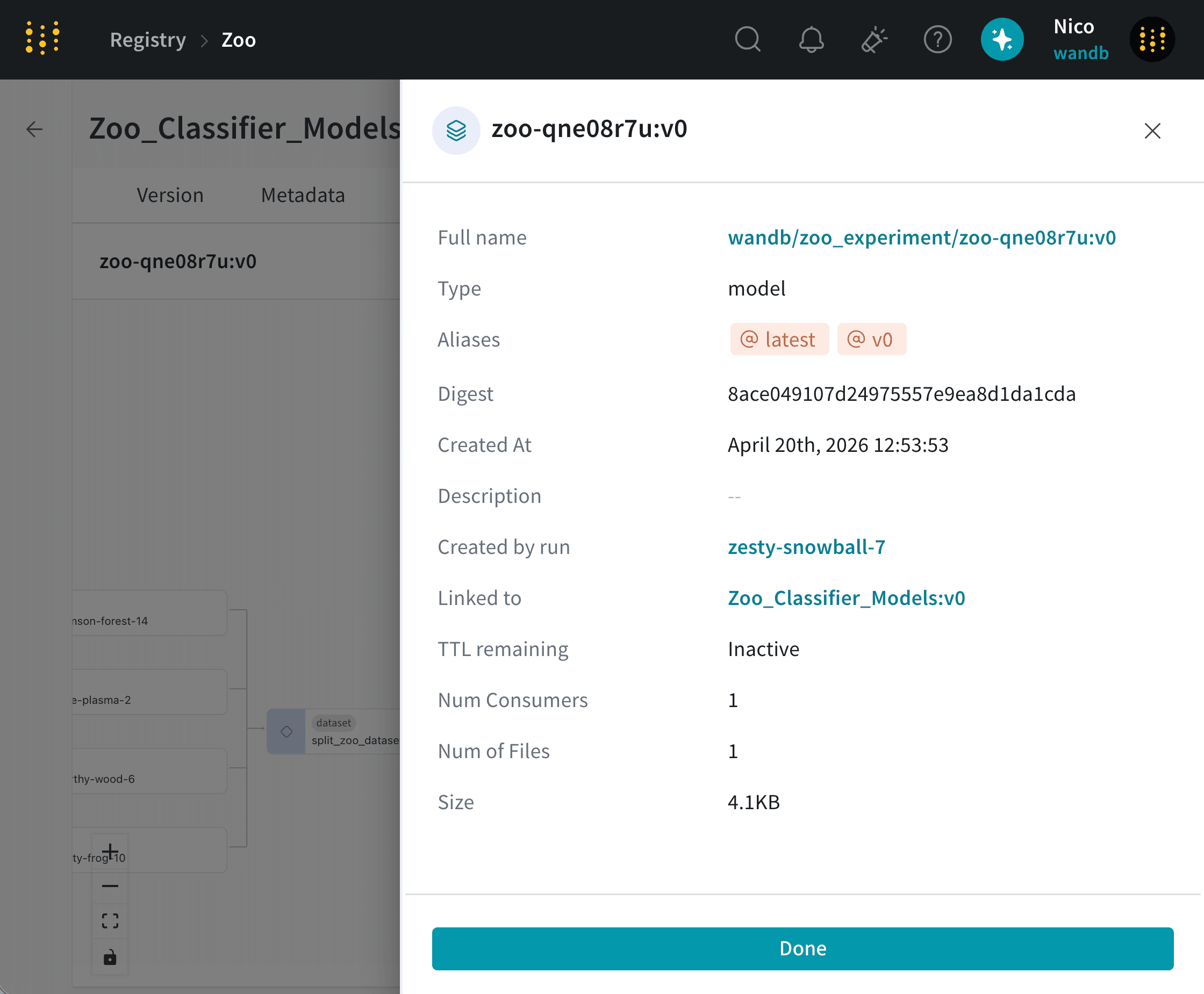

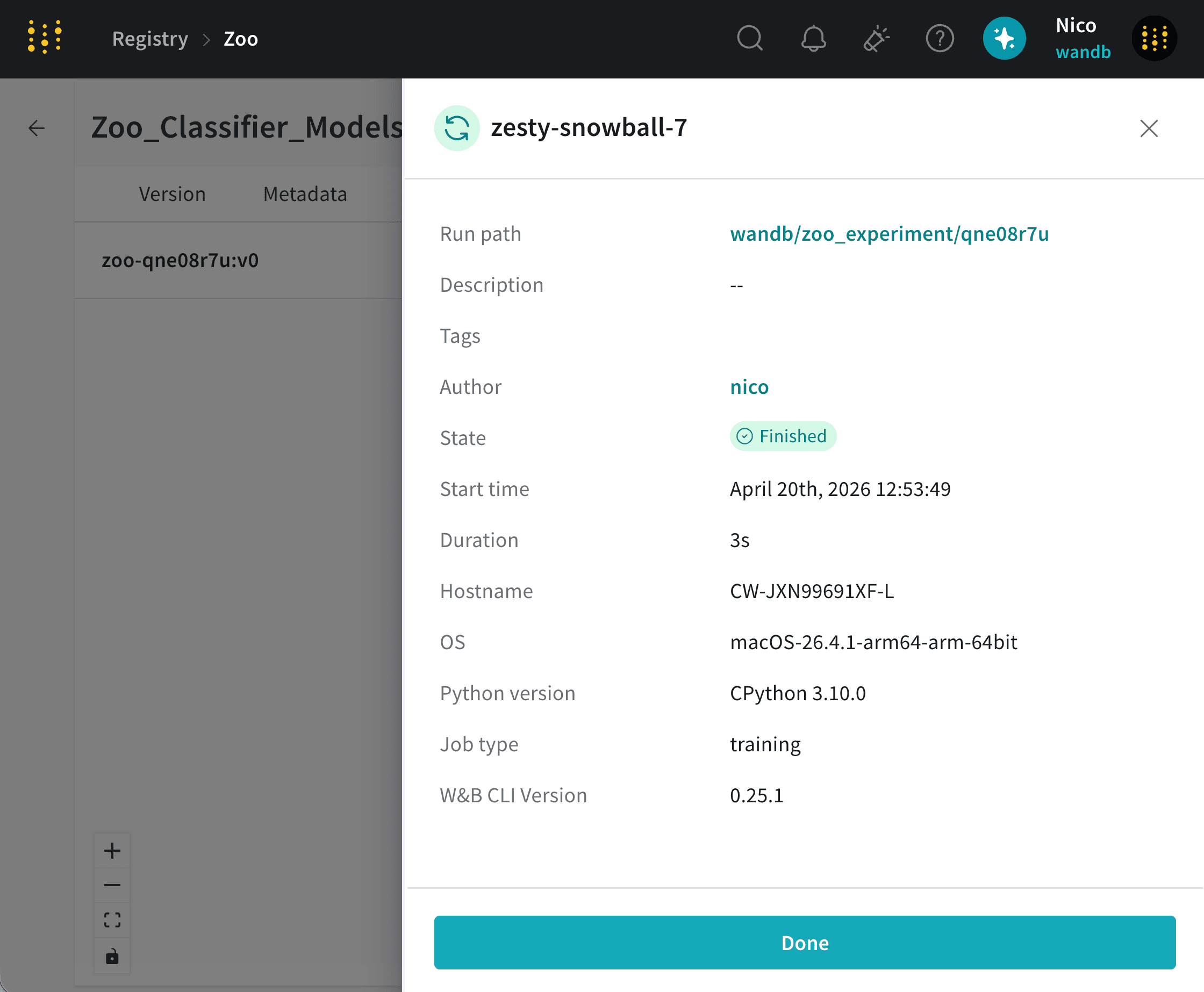

The following image shows the expanded view of a run (zesty-snowball-7) when you select a node in the lineage graph: The following image shows the expanded view of an artifact (zoo-qne08r7u:v0) when you select an artifact node in the lineage graph:

​

Create a custom view

Click Custom in the top-right corner of the lineage graph to create a custom view. You can filter and customize the lineage graph with the following options:

• Filter by artifact type: Filter by artifact type values logged to W&B. For example, if you log an artifact with the type “dataset”, then “dataset” is available as a filter value.
• Filter by run job type: Filter by run job type values logged to W&B. For example, if you log a run with the job type “training”, then “training” is available as a filter value.
• Include extended lineage: Display items that are not in the direct lineage for the base version.
• Include generated artifacts: Items created programmatically will show.
• Expand clusters: Similar items with similar connections will not be grouped together.
• Downstream hops: Descendant generations relative to the active node.
• Upstream hops: Ancestor generations relative to the active node.

To reset the lineage graph to its default view, click the backward arrow button.

​

Audit a collection’s history

This section explains how to review the action history of a collection so you can track who changed what and when. View actions that members of your organization take on that collection. You can view the following actions:

• Whether someone added or removed an alias from an artifact version.
• Whether someone added or removed an artifact version from a collection.

For both actions, you can view the user who performed the action and the date the action occurred. To view a collection’s action history:

1. Navigate to the W&B Registry.
2. Select the collection whose action history you want to view.
3. Select the dropdown menu next to the collection name.
4. Select the Action History option.
